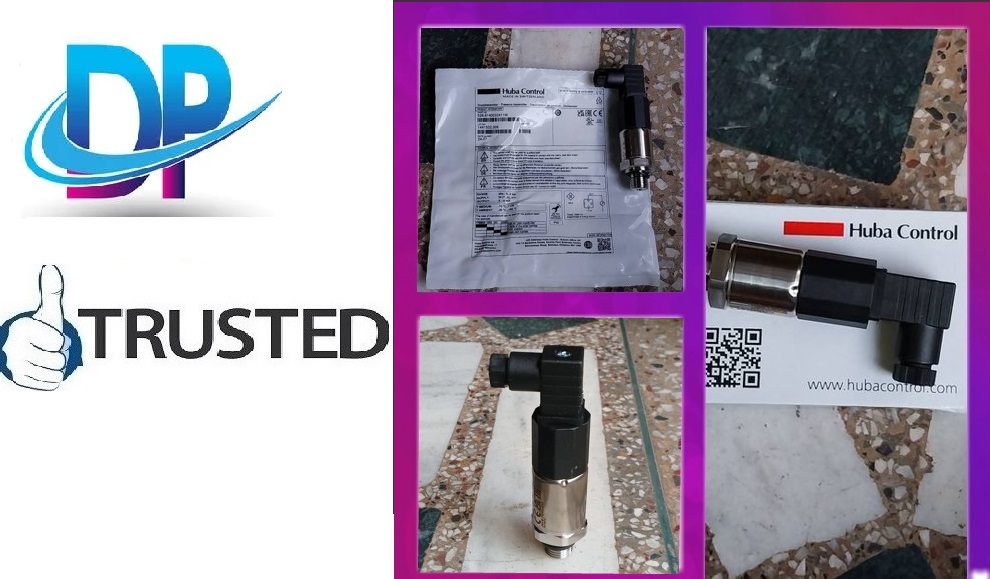

Pressure Transmitter HUBA I CONTROL Part No 520.933S032401 Range 0-40 Bar FOR SACHIN Industrial Estate SURAT Gujarat
Pressure Transmitter HUBA I CONTROL Part No 520.933S032401 Range 0-40 Bar FOR SACHIN Industrial Estate SURAT Gujarat
MANUFACTURER – HUBA CONTROL.
- MADE IN – SWITZERLAND
- PART NO – 520.933S032401.
- RANGE – 0…40 Bar
- Supply – 24 (7…33 ) V.
- OUTPUT – 4…20 mA.
- CONNECTION – 1/4″ NPT 316L SS.
- COUNTRY OF ORIGIN – INDIA
The Compact Type 520 Pressure Transmitter Is Based Upon The Huba Control Developed Thick Film Technology Where The Pressure Measuring Cell Is Fully Welded.This Transmitter Meets The High Burst Protection Demands And Is Suitable For The Use In All Types Of Refrigerants Including Ammonia.
Pressure Range
-1 … 9 bar / 0 … 2.5 – 1000 bar
Compact,Rugged Construction
Welded Without Sealing parts,No Elastomer Seals
Large Selection Of Connections Available.
Saving Time By Quick Cable Mounting By The Customer With Swift Connector
General Features:
Compact, Rugged Construction
Large Selection Of Connections Available
Welded Without Sealing Parts, No Elastomer Seals
Medium: Liquids, Gases And Refrigerants (Including Ammonia)
Saving Time By Quick Cable Mounting By The Customer With Swift Connector
| SERIES | Type 520 |
| PRESSURE RANGE | 0 … 40 BAR |
| POWER SUPPLY | 7 – 33 VDC |
| OUTPUT DC | 4 – 20 mA |
| ELECTRICAL CONNECTION | M12x1 |
| DESCRIPTION | Pressure Transmitter |
| PRESSURE CONNECTION | G 1/4 |
| INDEX PROTECTION IP | IP67 |
| ACCURACY | ± 0.3 % fs |
| MEDIUM TEMPERATURE RANGE | -15 … +125 °C |
| RESPONSE TIME | < 2 ms, (1 ms typical) |
| MATERIAL | Connection Stainless Steel 1.4404 / AISI 316L |
| DIMENSIONS (MM) | 24 x 46.7 MM |
| CONFORMITY | EN 61326-2-3 / IEC 68-2-27 / IEC 68-2-29 / IEC 68-2-6 / UL E325110 |
Additional Information:
Item Code: Pressure Transmitter HUBA I CONTROL Part No 520.933S032401 Range 0-40 Bar
- WhatsApp No.9871014210,WhatsApp No.9811065204,WhatsApp No.8376899729,WhatsApp No.8368888047,WhatsApp No.9268631221,

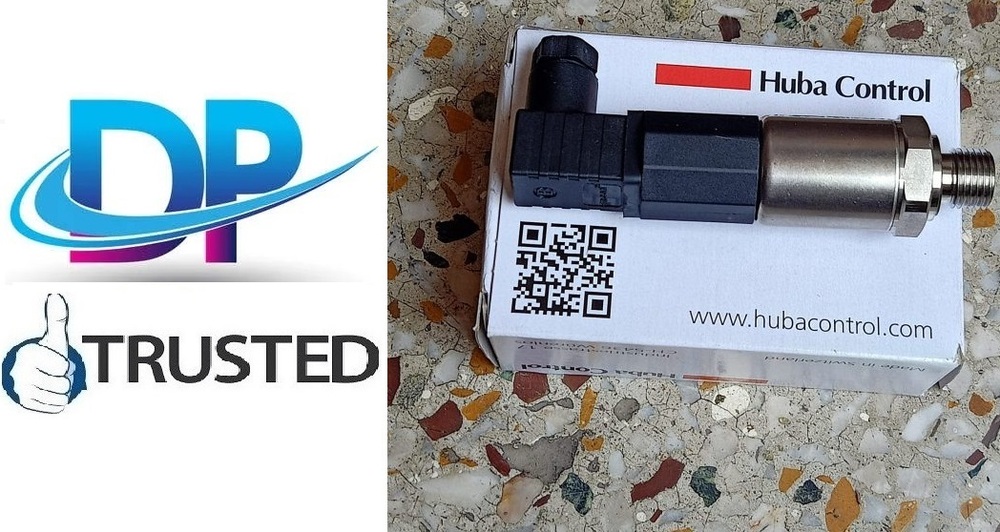

Huba Pressure Transmitter Model 520.954S032401 RANGE 0-400 BAR From Dalia Industrial Area Mumbai Maharashtra India
Huba Pressure Transmitter Model 520.954S032401 RANGE 0-400 BAR From Dalia Industrial Area Mumbai Maharashtra India
Relative Pressure Transmitter
- Type - 520
- Manufacturer - HUBA CONTROL
- Model - 520.954S032401/J1
- RANGE - 0-400 BAR
The Compact Type 520 Pressure Transmitter Is Based Upon The Huba Control Developed Thick Film Technology Where The Pressure Measuring Cell Is Fully Welded.
This Transmitter Meets The High Burst Protection Demands And Is Suitable For The Use In All Types Of Refrigerants Including Ammonia.
Pressure Range :
- -1 ... 9 bar / 0 ... 2.5 – 1000 bar
- Compact,Rugged Construction
- Welded Without Sealing parts,No Elastomer Seals
- Large Selection Of Connections Available.
- Saving Time By Quick Cable Mounting By The Customer With Swift Connector
General Features:
- Compact, Rugged Construction
- Large Selection Of Connections Available
- Welded Without Sealing Parts, No Elastomer Seals
- Medium: Liquids, Gases And Refrigerants (Including Ammonia)
- Saving Time By Quick Cable Mounting By The Customer With Swift Connector
| SERIES | Type 520 |
| PRESSURE RANGE | 0 ... 400 BAR |
| POWER SUPPLY | 7 - 33 VDC |
| OUTPUT DC | 4 - 20 mA |
| ELECTRICAL CONNECTION | M12x1 |
| DESCRIPTION | Pressure Transmitter |
| PRESSURE CONNECTION | G 1/4 |
| INDEX PROTECTION IP | IP67 |
| ACCURACY | ± 0.3 % fs |
| MEDIUM TEMPERATURE RANGE | -15 ... +125 °C |
| RESPONSE TIME | < 2 ms, (1 ms typical) |
| MATERIAL | Connection Stainless Steel 1.4404 / AISI 316L |
| DIMENSIONS (MM) | 24 x 46.7 MM |
| CONFORMITY | EN 61326-2-3 / IEC 68-2-27 / IEC 68-2-29 / IEC 68-2-6 / UL E325110 |
WhatsApp No.9871014210,WhatsApp No.9811065204,WhatsApp No.8376899729,WhatsApp No.8368888047,WhatsApp No.9268631221,

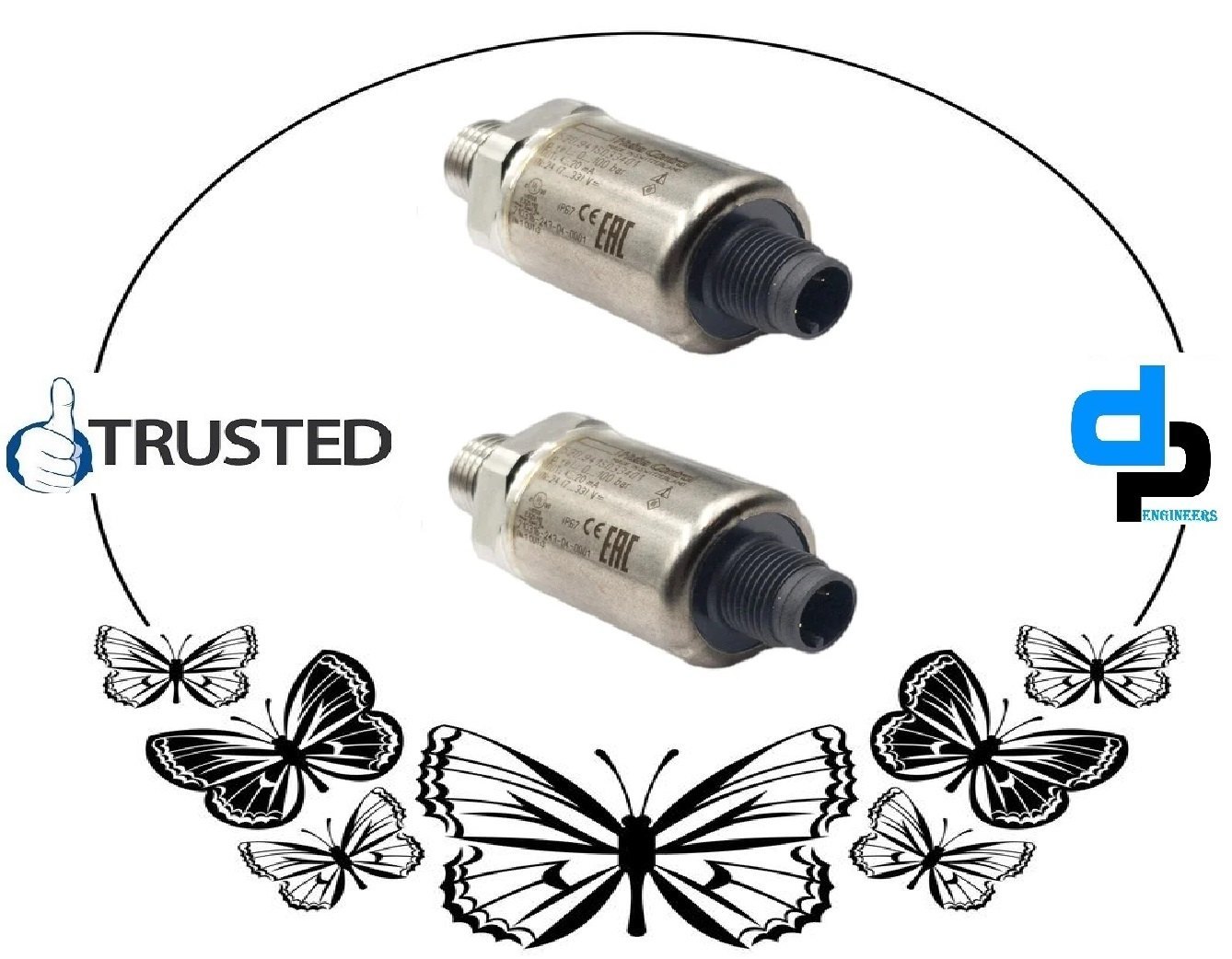

Pressure Transmitter HUBA CONTROL Part No 520.940S032401 Range 0-60 Bar - Universal Industrial Estate MUMBAI
Pressure Transmitter HUBA CONTROL Part No 520.940S032401 Range 0-60 Bar - Universal Industrial Estate MUMBAI
MANUFACTURER – HUBA CONTROL.
- MADE IN – SWITZERLAND
- PART NO – 520.940S032401.
- RANGE – 0…60 Bar
- Supply – 24 (7…33 ) V.
- OUTPUT – 4…20 mA.
- CONNECTION – 1/4″ NPT 316L SS.
- COUNTRY OF ORIGIN – INDIA
The Compact Type 520 Pressure Transmitter Is Based Upon The Huba Control Developed Thick Film Technology Where The Pressure Measuring Cell Is Fully Welded.
This Transmitter Meets The High Burst Protection Demands And Is Suitable For The Use In All Types Of Refrigerants Including Ammonia.
Pressure Range
- -1 … 9 bar / 0 … 2.5 – 1000 bar
- Compact,Rugged Construction
- Welded Without Sealing parts,No Elastomer Seals
- Large Selection Of Connections Available.
- Saving Time By Quick Cable Mounting By The Customer With Swift Connector
General Features:
- Compact, Rugged Construction
- Large Selection Of Connections Available
- Welded Without Sealing Parts, No Elastomer Seals
- Medium: Liquids, Gases And Refrigerants (Including Ammonia)
- Saving Time By Quick Cable Mounting By The Customer With Swift Connector
| SERIES | Type 520 |
| PRESSURE RANGE | 0 … 60 BAR |
| POWER SUPPLY | 7 – 33 VDC |
| OUTPUT DC | 4 – 20 mA |
| ELECTRICAL CONNECTION | M12x1 |
| DESCRIPTION | Pressure Transmitter |
| PRESSURE CONNECTION | G 1/4 |
| INDEX PROTECTION IP | IP67 |
| ACCURACY | ± 0.3 % fs |
| MEDIUM TEMPERATURE RANGE | -15 … +125 °C |
| RESPONSE TIME | < 2 ms, (1 ms typical) |
| MATERIAL | Connection Stainless Steel 1.4404 / AISI 316L |
| DIMENSIONS (MM) | 24 x 46.7 MM |
| CONFORMITY | EN 61326-2-3 / IEC 68-2-27 / IEC 68-2-29 / IEC 68-2-6 / UL E325110 |
WhatsApp No.9871014210,WhatsApp No.9811065204,WhatsApp No.8376899729,WhatsApp No.8368888047,WhatsApp No.9268631221,

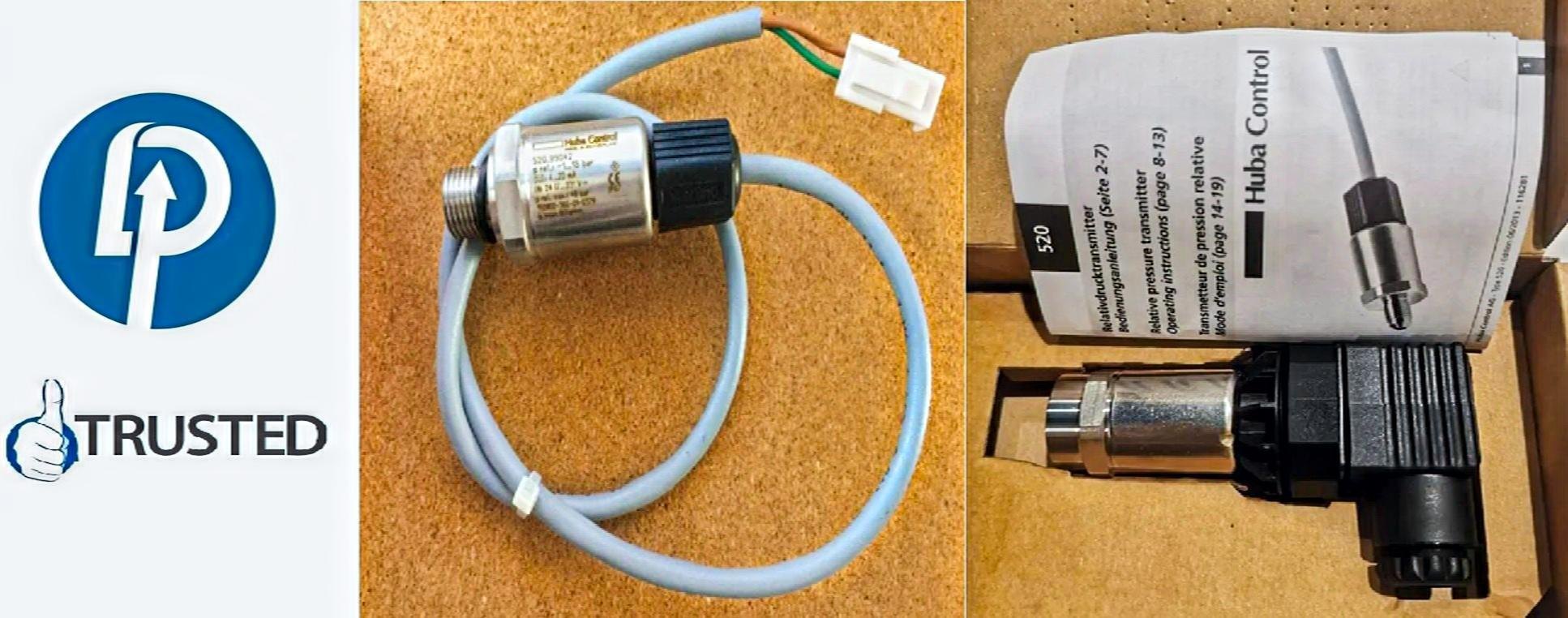

Huba Pressure Transmitter Model 520.917S032401 RANGE 0-6 BAR For Vikram Udyogpuri Industrial Area Madhya Pradesh
Huba Pressure Transmitter Model 520.917S032401 RANGE 0-6 BAR For Vikram Udyogpuri Industrial Area Madhya Pradesh
- Relative Pressure Transmitter
- Type - 520
- Manufacturer - HUBA CONTROL
- Model - 520.917S032401/J1
- RANGE - 0-6 BAR
The Compact Type 520 Pressure Transmitter Is Based Upon The Huba Control Developed Thick Film Technology Where The Pressure Measuring Cell Is Fully Welded.
This Transmitter Meets The High Burst Protection Demands And Is Suitable For The Use In All Types Of Refrigerants Including Ammonia.
Pressure Range
- -1 ... 9 bar / 0 ... 2.5 – 1000 bar
- Compact,Rugged Construction
- Welded Without Sealing parts,No Elastomer Seals
- Large Selection Of Connections Available.
- Saving Time By Quick Cable Mounting By The Customer With Swift Connector
General Features:
- Compact, Rugged Construction
- Large Selection Of Connections Available
- Welded Without Sealing Parts, No Elastomer Seals
- Medium: Liquids, Gases And Refrigerants (Including Ammonia)
- Saving Time By Quick Cable Mounting By The Customer With Swift Connector
| SERIES | Type 520 |
| PRESSURE RANGE | 0 ... 6 BAR |
| POWER SUPPLY | 7 - 33 VDC |
| OUTPUT DC | 4 - 20 mA |
| ELECTRICAL CONNECTION | M12x1 |
| DESCRIPTION | Pressure Transmitter |
| PRESSURE CONNECTION | G 1/4 |
| INDEX PROTECTION IP | IP67 |
| ACCURACY | ± 0.3 % fs |
| MEDIUM TEMPERATURE RANGE | -15 ... +125 °C |
| RESPONSE TIME | < 2 ms, (1 ms typical) |
| MATERIAL | Connection Stainless Steel 1.4404 / AISI 316L |
| DIMENSIONS (MM) | 24 x 46.7 MM |
| CONFORMITY | EN 61326-2-3 / IEC 68-2-27 / IEC 68-2-29 / IEC 68-2-6 / UL E325110 |
Huba Pressure Transmitter Model 520.931S032401/J1 RANGE 0-16 BAR Near Solaris Industrial Estate MUMBAI MAHARASHTRA
- Relative Pressure Transmitter
- Type - 520
- Manufacturer - HUBA CONTROL
- Model - 520.931S032401/J1
- RANGE - 0-16 BAR
The Compact Type 520 Pressure Transmitter Is Based Upon The Huba Control Developed Thick Film Technology Where The Pressure Measuring Cell Is Fully Welded.
This Transmitter Meets The High Burst Protection Demands And Is Suitable For The Use In All Types Of Refrigerants Including Ammonia.
Pressure Range
- -1 ... 9 bar / 0 ... 2.5 – 1000 bar
- Compact,Rugged Construction
- Welded Without Sealing parts,No Elastomer Seals
- Large Selection Of Connections Available.
- Saving Time By Quick Cable Mounting By The Customer With Swift Connector
General Features:
- Compact, Rugged Construction
- Large Selection Of Connections Available
- Welded Without Sealing Parts, No Elastomer Seals
- Medium: Liquids, Gases And Refrigerants (Including Ammonia)
- Saving Time By Quick Cable Mounting By The Customer With Swift Connector
| SERIES | Type 520 |
| PRESSURE RANGE | 0 ... 16 BAR |
| POWER SUPPLY | 7 - 33 VDC |
| OUTPUT DC | 4 - 20 mA |
| ELECTRICAL CONNECTION | M12x1 |
| DESCRIPTION | Pressure Transmitter |
| PRESSURE CONNECTION | G 1/4 |
| INDEX PROTECTION IP | IP67 |
| ACCURACY | ± 0.3 % fs |
| MEDIUM TEMPERATURE RANGE | -15 ... +125 °C |
| RESPONSE TIME | < 2 ms, (1 ms typical) |
| MATERIAL | Connection Stainless Steel 1.4404 / AISI 316L |
| DIMENSIONS (MM) | 24 x 46.7 MM |
| CONFORMITY | EN 61326-2-3 / IEC 68-2-27 / IEC 68-2-29 / IEC 68-2-6 / UL E325110 |

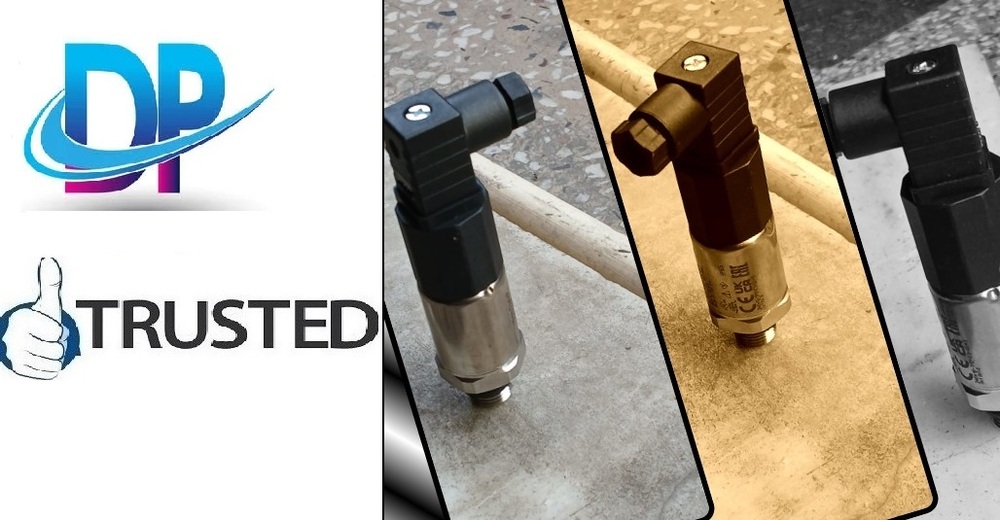

HUBA I SWITZERLAND Pressure Transmitter Part No 520.930S032401 Range 0-10 Bar For Kalol Industrial Estate Gandhinagar Gujarat
- HUBA I SWITZERLAND Pressure Transmitter Part No 520.930S032401 Range 0-10 Bar For Kalol Industrial Estate Gandhinagar Gujarat
- MANUFACTURER – HUBA CONTROL.
- MADE IN – SWITZERLAND
- PART NO – 520.930S032401
- RANGE – 0…10 Bar
- Supply – 24 (7…33 ) V.
- OUTPUT – 4…20 mA.
- CONNECTION – 1/4″ NPT 316L SS.
- COUNTRY OF ORIGIN – INDIA
The Compact Type 520 Pressure Transmitter Is Based Upon The Huba Control Developed Thick Film Technology Where The Pressure Measuring Cell Is Fully Welded.
This Transmitter Meets The High Burst Protection Demands And Is Suitable For The Use In All Types Of Refrigerants Including Ammonia.
Pressure Range
- -1 … 9 bar / 0 … 2.5 – 1000 bar
- Compact,Rugged Construction
- Welded Without Sealing parts,No Elastomer Seals
- Large Selection Of Connections Available.
- Saving Time By Quick Cable Mounting By The Customer With Swift Connector
General Features:
- Compact, Rugged Construction
- Large Selection Of Connections Available
- Welded Without Sealing Parts, No Elastomer Seals
- Medium: Liquids, Gases And Refrigerants (Including Ammonia)
- Saving Time By Quick Cable Mounting By The Customer With Swift Connector
| SERIES | Type 520 |
| PRESSURE RANGE | 0 … 10 BAR |
| POWER SUPPLY | 7 – 33 VDC |
| OUTPUT DC | 4 – 20 mA |
| ELECTRICAL CONNECTION | M12x1 |
| DESCRIPTION | Pressure Transmitter |
| PRESSURE CONNECTION | G 1/4 |
| INDEX PROTECTION IP | IP67 |
| ACCURACY | ± 0.3 % fs |
| MEDIUM TEMPERATURE RANGE | -15 … +125 °C |
| RESPONSE TIME | < 2 ms, (1 ms typical) |
| MATERIAL | Connection Stainless Steel 1.4404 / AISI 316L |
| DIMENSIONS (MM) | 24 x 46.7 MM |
| CONFORMITY | EN 61326-2-3 / IEC 68-2-27 / IEC 68-2-29 / IEC 68-2-6 / UL E325110 |
Huba - Pressure Transmitter Model 520.955S032401W RANGE 0-700 BAR OUTPUT 4-20mA NEAR DAMANGANGA INDUSTRIAL PARK VAPI GUJARAT
Huba - Pressure Transmitter Model 520.955S032401W RANGE 0-700 BAR OUTPUT 4-20mA NEAR DAMANGANGA INDUSTRIAL PARK VAPI GUJARAT
Relative Pressure Transmitter
- Type – 520
- Manufacturer – HUBA CONTROL
- Model – 520.955S032401W
- RANGE – 0-700 BAR
- The Compact Type 520 Pressure Transmitter Is Based Upon The Huba Control Developed Thick Film Technology Where The Pressure Measuring Cell Is Fully Welded.This Transmitter Meets The High Burst Protection Demands And Is Suitable For The Use In All Types Of Refrigerants Including Ammonia.
Pressure Range
-1 … 9 bar / 0 … 2.5 – 1000 bar
- Compact,Rugged Construction
- Welded Without Sealing parts,No Elastomer Seals
- Large Selection Of Connections Available.
- Saving Time By Quick Cable Mounting By The Customer With Swift Connector
- General Features:
Compact, Rugged Construction
- Large Selection Of Connections Available
- Welded Without Sealing Parts, No Elastomer Seals
- Medium: Liquids, Gases And Refrigerants (Including Ammonia)
- Saving Time By Quick Cable Mounting By The Customer With Swift Connector
WhatsApp No.9871014210,WhatsApp No.9811065204,WhatsApp No.8376899729,WhatsApp No.8368888047,WhatsApp No.9268631221,SERIES Type 520 PRESSURE RANGE 0 … 700 BAR POWER SUPPLY 7 – 33 VDC OUTPUT DC 4 – 20 mA ELECTRICAL CONNECTION M12x1 DESCRIPTION Pressure Transmitter PRESSURE CONNECTION G 1/4 INDEX PROTECTION IP IP67 ACCURACY ± 0.3 % fs MEDIUM TEMPERATURE RANGE -15 … +125 °C RESPONSE TIME < 2 ms, (1 ms typical) MATERIAL Connection Stainless Steel 1.4404 / AISI 316L DIMENSIONS (MM) 24 x 46.7 MM CONFORMITY EN 61326-2-3 / IEC 68-2-27 / IEC 68-2-29 / IEC 68-2-6 / UL E325110
Huba - Pressure Transmitter Model 520.914S032401W RANGE -1-10 BAR OUTPUT 4-20mA For VAMOGANIC INDUSTRIAL AREA UTTAR PRADESH 244223
Huba - Pressure Transmitter Model 520.914S032401W RANGE -1-10 BAR OUTPUT 4-20mA For VAMOGANIC INDUSTRIAL AREA UTTAR PRADESH 244223
- Relative Pressure Transmitter
- Type – 520
- Manufacturer – HUBA CONTROL
- Model – 520.914S032401W
- RANGE – 0-10 BAR
The Compact Type 520 Pressure Transmitter Is Based Upon The Huba Control Developed Thick Film Technology Where The Pressure Measuring Cell Is Fully Welded.
This Transmitter Meets The High Burst Protection Demands And Is Suitable For The Use In All Types Of Refrigerants Including Ammonia.
Pressure Range
- -1 … 9 bar / 0 … 2.5 – 1000 bar
- Compact,Rugged Construction
- Welded Without Sealing parts,No Elastomer Seals
- Large Selection Of Connections Available.
- Saving Time By Quick Cable Mounting By The Customer With Swift Connector
- General Features:
Compact, Rugged Construction
- Large Selection Of Connections Available
- Welded Without Sealing Parts, No Elastomer Seals
- Medium: Liquids, Gases And Refrigerants (Including Ammonia)
- Saving Time By Quick Cable Mounting By The Customer With Swift Connector
WhatsApp No.9871014210,WhatsApp No.9811065204,WhatsApp No.8376899729,WhatsApp No.8368888047,WhatsApp No.9268631221,SERIES Type 520 PRESSURE RANGE -1 … 10 BAR POWER SUPPLY 7 – 33 VDC OUTPUT DC 4 – 20 mA ELECTRICAL CONNECTION M12x1 DESCRIPTION Pressure Transmitter PRESSURE CONNECTION G 1/4 INDEX PROTECTION IP IP67 ACCURACY ± 0.3 % fs MEDIUM TEMPERATURE RANGE -15 … +125 °C RESPONSE TIME < 2 ms, (1 ms typical) MATERIAL Connection Stainless Steel 1.4404 / AISI 316L DIMENSIONS (MM) 24 x 46.7 MM CONFORMITY EN 61326-2-3 / IEC 68-2-27 / IEC 68-2-29 / IEC 68-2-6 / UL E325110
Industrial Cooler Body Ducting
We offer to the customers a superior range of Air Cooling Systems which are high on demand in the market and they are widely used both in the residential as well as industrial areas and these products have been made using a superior range of raw materials. Our products are well known in the market for their high performance and we have priced these products at very reasonable rates in the market. We ensure that these products are supplied to the customers on time as per their requirements.
Features –
- Durable
- Reliable
- High performance
Other Information
- Pay Mode Terms: T/T (Bank Transfer)
Fresh Air Ducting
D.P.ENGINEERS is one of the leading Fresh Air Duct manufacturers and suppliers in Delhi & NCR.
These fresh air ducts for ventilation system are widely used in factories and commercial buildings.
Other Information
- Pay Mode Terms: T/T (Bank Transfer)
Air Cooling System
The Air Cooling System, fabricated by us, has a specially designed resin instilled corrugated sheet cooling pads for filtration and circulation of air. The system is highly effective for cooling in the summer heat, most apt for commercial, industrial and residential applications in the Asian and Middle Eastern countries owing to its evaporate air cooling feature needed for places with lower relative humidity. Low cost and little maintenance, makes it an ideal cooling system.
Other Information
- Pay Mode Terms: T/T (Bank Transfer)
Pollution Control System Ducting
-
We supply Air-Pollution Control System that includes suction hoods, air conveyance ducting, blowers & air pollution control equipment like dust collectors, bag filters, cyclones and scrubbers. With our air pollution control system, dust & fume is extracted by hoods & conveyed by ducting and controlled by dust collectors, scrubbers and cyclones.
-
A blower is connected with an electric motor that supplies energy.
-
The stack, chimney design & height are also incorporated in dispersing and diluting the ambient air.
Other Information
- Pay Mode Terms: T/T (Bank Transfer)
Kitchen Hood Ducting
-
Capitalizing on our in-depth industry expertise, we are manufacturing and supplying a comprehensive range of Exhaust Hood With Ducting.
-
We also provide a wide range of Kitchen Equipment that include Catering Tandoor, Upright Showcase Cooler, Wine Cups, Regular Cocktail Shaker and Refrigerated Display Cabinets.
Other Information
- Pay Mode Terms: T/T (Bank Transfer)
Air Handling Unit Repair
D.P.ENGINEER recognise that in todays climate clients do not want the upheaval and expense of purchasing new air handling units. Our qualified technicians have the capability and technical expertise to provide the best option for you, by either refurbishing or replacing older high spec equipment.
Advantages of A.H.U. refurbishment compared to replacement:
- More environmentally friendly by re-using existing plant
- Reduced cost compared to purchasing new units
- Minimal plant downtime
- Typically existing services are unaltered
- Minimal disruption to the buildings normal operation
- Use of existing access routes to bring new components to plant
We offer the following repair serivces to Air Handling Units:
- Dampers
- Actuators
- Motors
- Heating & cooling coils
- New skins
- Filters, filter frames, flooring and media
- Drain pans
- A/V mounts and flexible connections within the fan chamber
- External and internal painting
For more specialised services please contact our sales team at
Other Information
- Pay Mode Terms: T/T (Bank Transfer)
