Pharma Spares: D.P.ENGINEERS Manufacturer In India- D.P.ENGINEERS

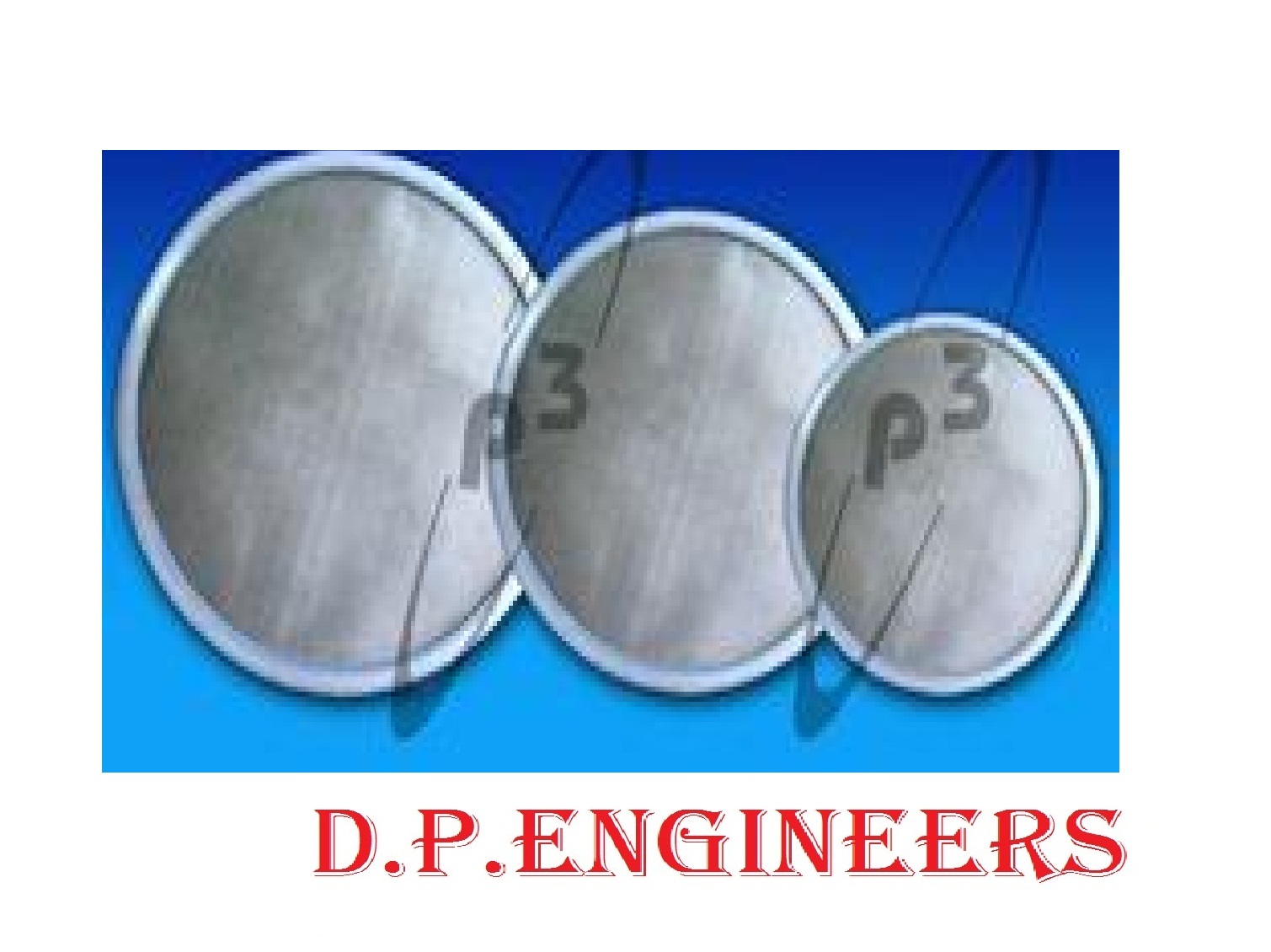

Silicon Moulded Sifter Sieve
Silicon Moulded Sifter Sieve
We offer Silicon Moulded Sifter Sieve. These are available in various sizes from 12" to 48" diameter. The most common size used is 20" diameter (550 mm) & 30" diameter (750 mm). The silicon which is of food grade quality, transparent in appearance, non-toxic is moulded on the stainless steel ring. These are available in riveted and special non-riveted design, the mesh sizes varies from 4 mesh to 500 mesh with a. S. T. M & b. S. S standard being certified on 90 x microscope, with complete set of certificates, the sieves without silicon moulding are also available.
Features:
Reasonable price
- Quality material
- Various sizes
Other Information
- Pay Mode Terms: T/T (Bank Transfer)
Sifter Sieves
Mechanical Sifter Sieves: - Sieves for mech. shifter size of 20” and 30” and mesh size as per clients choice. In big sizes supports are provided for the rigidity and stiffness.
We are looking queries from Sri lanka, Nepal, Bangladesh,
Other Information
- Pay Mode Terms: T/T (Bank Transfer)

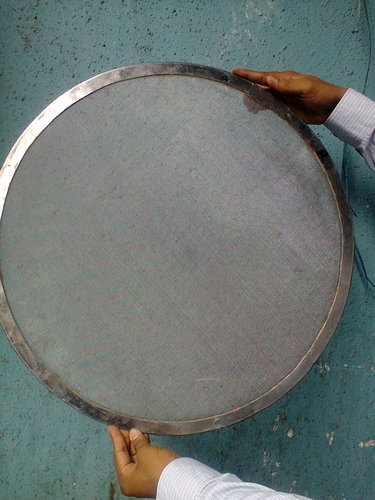

SS Sifter Sieves
We manufacture SS Sifter Sieves in SS 304 and SS 316 with Silicon Molded / without Silicon molded
Sifter Sieves: SSl Sifter Sieves made out from SS 304/316
Size:
- Dia 20"- 4 Mesh To 200 Mesh
- Dia 30"- 4 Mesh To 200 Mesh
- Dia 48"- 4 Mesh To 200 Mesh
Other Information
- Pay Mode Terms: T/T (Bank Transfer)
Pharma Sifter Sieves

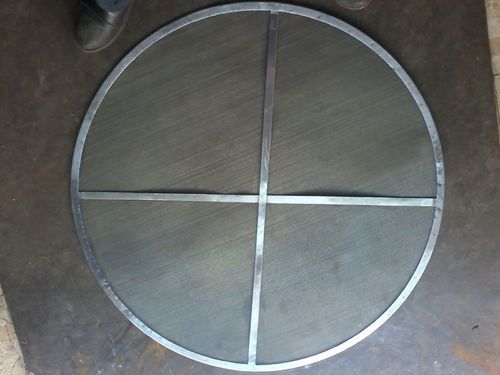

We are engaged in offering our clients with a qualitative range of Pharma Sifter Sieves. These are offered in diameters of 20, 30, 40, and 48 inches and also as per the drawings from 4 meshes to 500 meshes with additional cross support of 18 SWGS. Our range is cross welded to the bottom of the ring with additional sieves. This supports sieves as per customer specifications and we also silicon mould sifter sieves using SS 316/304.
Mesh Nos |
Mesh Nos |
Indian Std |
Microns |
| 4 | 5 | 4.00mm | 4000 |
| 5 | 6 | 3.35mm | 3353 |
| 6 | 7 | 2.80mm | 2812 |
| 7 | 8 | 2.36mm | 2411 |
| 8 | 10 | 2.00mm | 2057 |
| 10 | 12 | 1.70mm | 4000 |
| 12 | 14 | 1.40mm | 1405 |
| 14 | 16 | 1.18mm | 1204 |
| 16 | 18 | 1.00mm | 1204 |
| 18 | 20 | 0.850mm | 850 |
| 22 | 25 | 0.710mm | 710 |
| 25 | 30 | 0.600mm | 600 |
| 30 | 35 | 0.500mm | 500 |
| 36 | 40 | 0.425mm | 420 |
| 44 | 45 | 0.355mm | 355 |
| 52 | 50 | 0..300mm | 300 |
| 60 | 60 | 0.250mm | 250 |
| 72 | 70 | 0.212mm | 210 |
| 85 | 80 | 0.180mm | 180 |
| 100 | 100 | 0.150mm | 150 |
Other Information
- Pay Mode Terms: T/T (Bank Transfer)
